Specification
| Product Name | Boat Marine RV Battery Switch |
| Color | Red |
| Switch Type | Dual Circuit Plus |
| Switch Positions | 3 |
| Battery Combine | Yes |

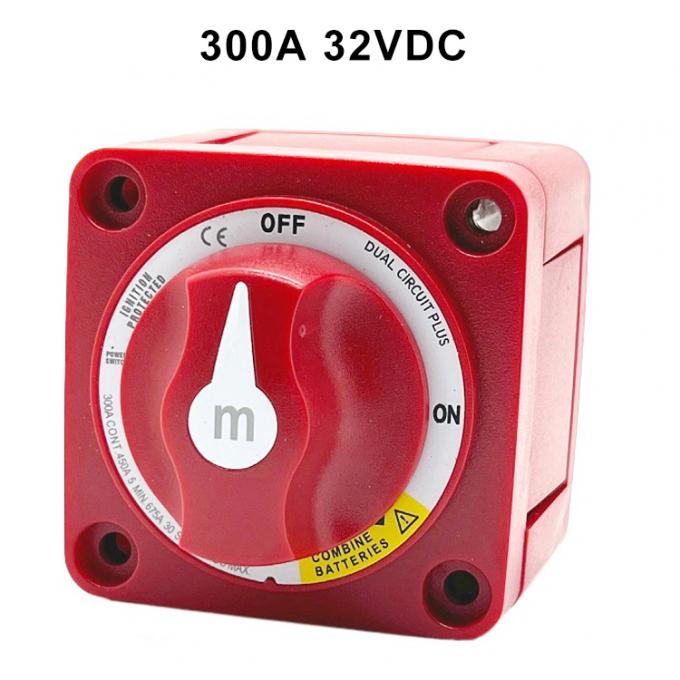

| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Starting Rating 30 sec | 675A per circuit |
| Maximum Voltage | 32VDC |
| Stud Size | 3/8" |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Battery Inputs | 2 |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Weight | 0.80lb (0.36 kg) |
Features

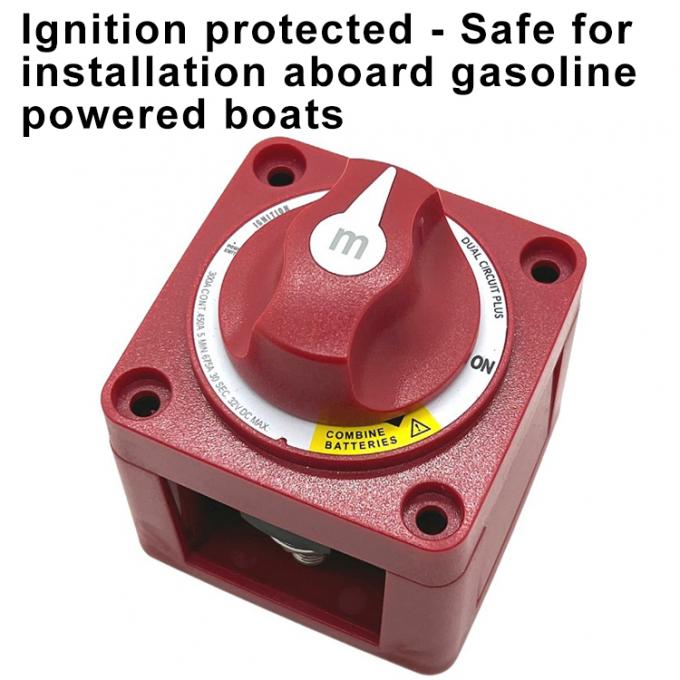

•Ignition protected - Safe for installation aboard gasoline powered boats

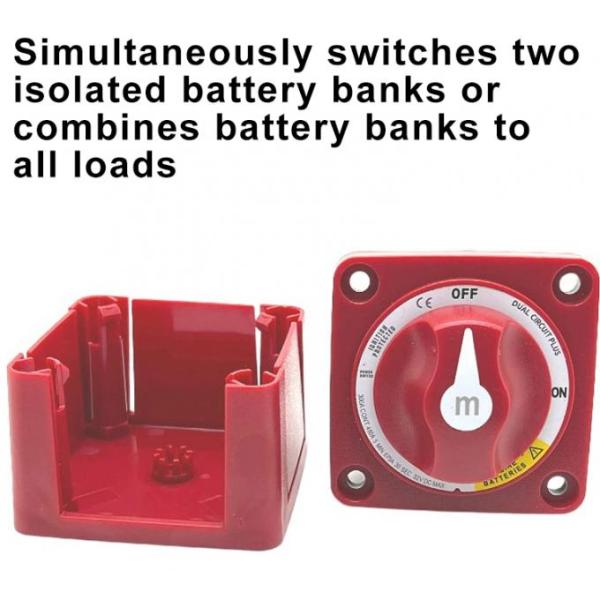

•Case design allows surface, front panel, or rear panel mounting
•Isolating cover with snap-on sections protects rear contacts
•3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

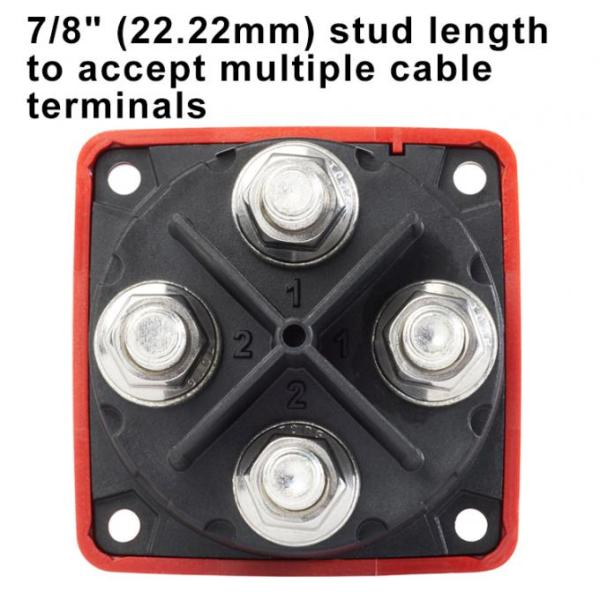

•7/8" (22.22mm) stud length to accept multiple cable terminals
•Ideal for marine or RV applications
•All non-corrosive marine grade metals
•Molded in durable reinforced polycarbonate
•Tactile textures indicate knob position by feel only
•Label with international ON/OFF legends
•Removable key or knob remains positively retained
•ICON label set included for circuit identification
Photos
Application

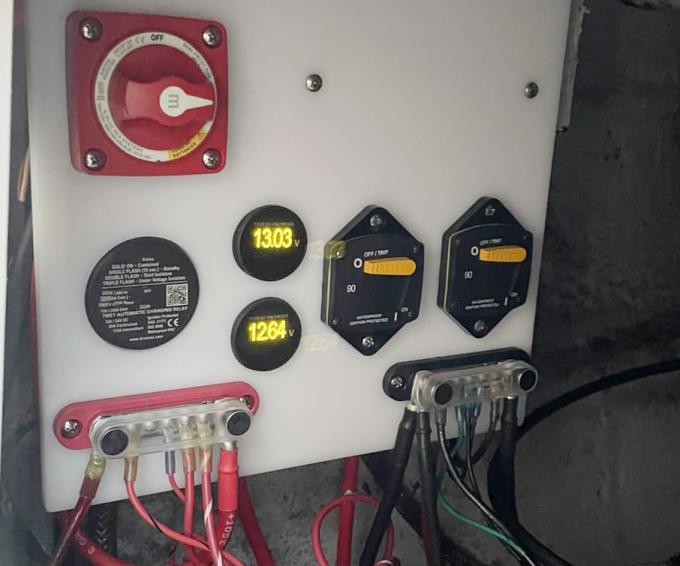

This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.
Related types of battery switches
1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?
A:First of all please tell us as soon as possible after we send a new one to you immediately but please send the broken product to us.You don't have to worry about the carriage charge we will pay for that.
2Q:Are we a trader or manufacturer?
A:Both
3Q:What is approval?

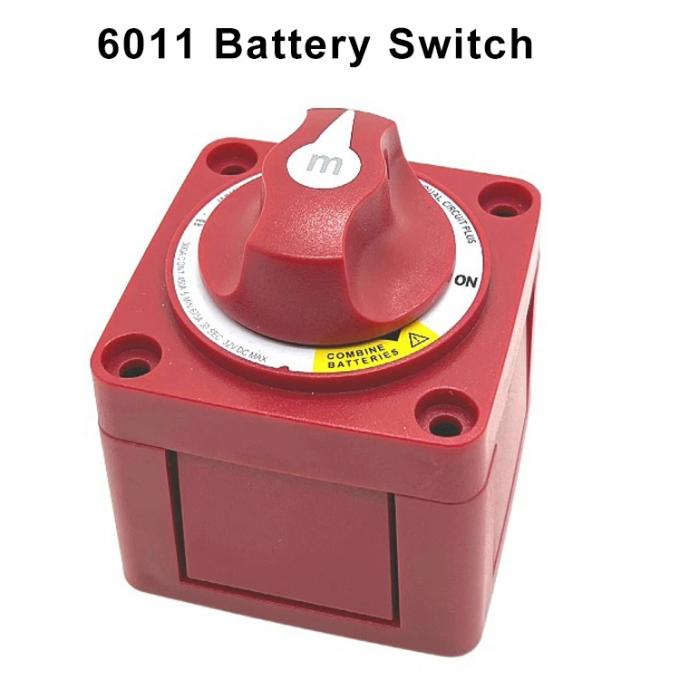

A:ROHS of 6011 M Series 300A Main Battery Power Switch for RV Yacht Marine
